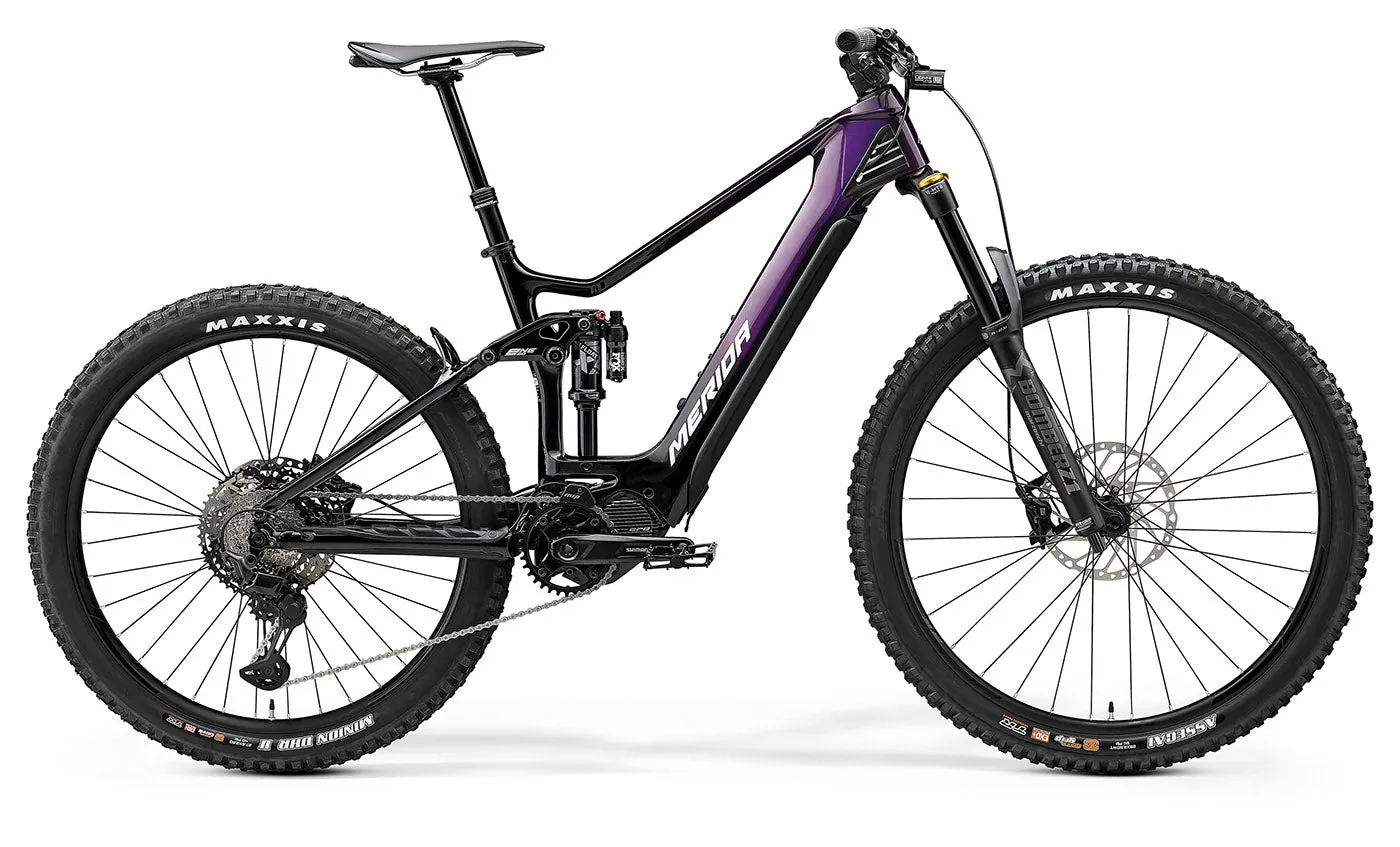

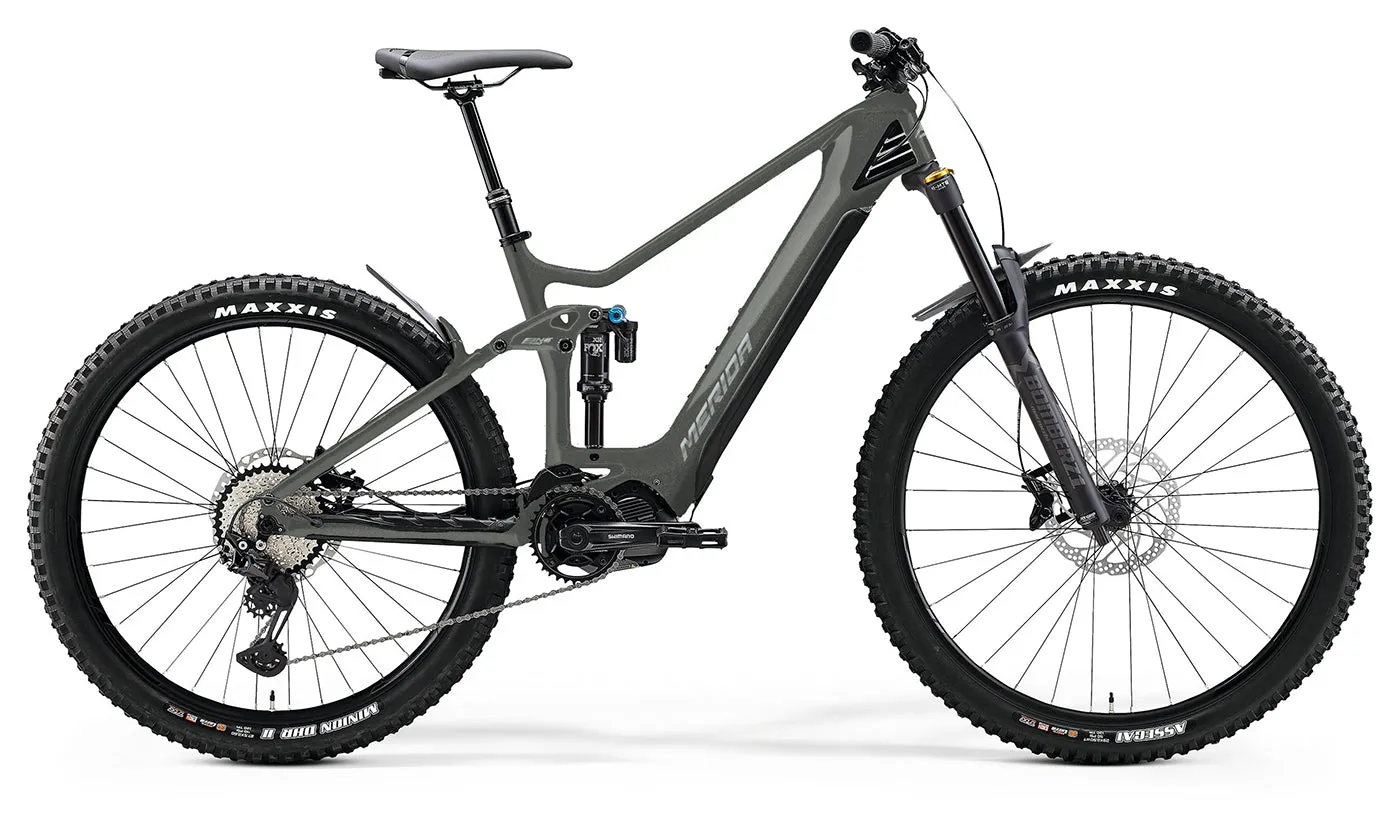

The new eONE-SIXTY once again embodies e-enduro bikes, instead of the normally needed shuttle to session your favourite tracks, you have your own built-in engine to assist you to the top. On downhills, it still feels like a normal bike, agile due to its perfectly tuned MTB geometry, but more planted because of the higher weight. All in all, it’s a super fun bike with a clear focus on trail riding. But the last few years have shown that our eONE-SIXTY is also often used as a kind of 'SUV' bike. Because of the advantages of more travel, bigger tyres and comfortable geometry, it also shines away from the enduro tracks and offers a super fun, comfortable and capable alternative to a ‘normal’ mountain bike.

Frame: eONE-SIXTY CFA II; MAT carbon; 150 STR; 27.5x2.8" max. WHS; 148x12 AST; intube; max. 630 Wh
Sizes: S-M-L-XL
Fork: Marzocchi Z1 Ebike ; Air; 160 STR; Tapered; 51mm fork offset; 29x2.6" max WHS
Rear Shock: FOX Float DPX2 Performance; platform
Drive Unit: Shimano DU-EP600, 85Nm
Battery: Shimano EN806 630Wh / Shimano EN805 504Wh for XS only
Battery Charger: Shimano EC-E8004; 4A charging current
Display: Shimano SC-EN600
Mode Switch: Shimano SW-EN600-L
Rear Derailleur: Shimano XT RDM8130 Shadow 11
Shifters: Shimano XT M8130 11
Dropper Post Lever: Shimano SL -MT500-IL
Brake-F: Shimano SLX; 4 piston
Brake-R: Shimano SLX; 4 piston
Rotor-F: Shimano RT64; 203 mm
Rotor-R: Shimano RTEM600; 203 mm
Chainring: Shimano CRE80-B; 34 ATC
Crank: Shimano FCEM600; 165 mm for all sizes
Chain: CNLG500
Cassette: Shimano LG600; 11-50 ATC; 11 GER
Pedals: VP VPE-527
Handlebar: MERIDA EXPERT eTR; 780 WHB; 20 RHB
Handlebar Stem: MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount
Stem Length: 40 mm all sizes
Seat Post: MERIDA EXPERT TR; 30.9 DSP; 0 SSB; XS 100 SPT - S 125 SPT - M 150 SPT - L/XL 170 SPT
Saddle: MERIDA EXPERT CC; V-mount
Hub-F: Shimano XT; 110x15 WHF; 32 SPH; Centerlock
Hub-R: Shimano XT; 148x12 WHR; 36 SPH; Centerlock
Axle-R: MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
Rims: MERIDA EXPERT TR; 29 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included)
Tyre-F: Maxxis Assegai; 29x2.5 "; fold; TR EXO 3C MaxxGrip
Tyre-R: Maxxis DHR II; 27.5x2.6 "; fold; 3C EXO TR
Light Front: LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount
Light Rear: USB REAR Light CG-214RG
Other: MERIDA Multitool with saddlebox
Max Rider Weight: 140kg
